The DT9602R is a professional fully featured true RMS multimeter with RS232 Optical interface. It measures /DC voltage, current, resistance, capacitance, frequency, temperature, duty cycle and etc.. It has many nice features such as flexible auto power offer, data hold, back light and a lot more. It even has a test lead holder for your convenience. Specifications DC voltage: 600mV/6/60/600V ± 0.5%, 1000V ± 0.8%, voltage: 6/60/600V ± 0.75%, 750 ± 1.2%, DC current: 600µA/6/60/600mA ± 1.5%, 6/10A ± 2.0%, current: 600µA/6/60/600mA ± 2.0%, 6/10A ± 2.5%, Resistance: 600Ω/6/60/600KΩ ± 1.0%, 6/60MΩ ± 2.0% Capacitance: 4nF ± 5.0%, 40/400nF/4/40µF ± 3.0%, 400µF ± 5.0%, 4mF ± 20.0%, Temperature: -50 °C--+400°C ± 0.75% ± 3 °C, -58 °F--+752°F ± 0.75% ± 5 °F, Frequency: 1Hz - 10 MHz ± 0.1%, Duty Cycle: 0.1% - 99.9% ± 2.5%, Diode Check, Continuity buzzer. Accessories include A pair of test leads with shrouded plugs and capped tips, Optical RS232 cable, K-type Thermo probe, User manual. Optional RS232 - USB cable sold separately.

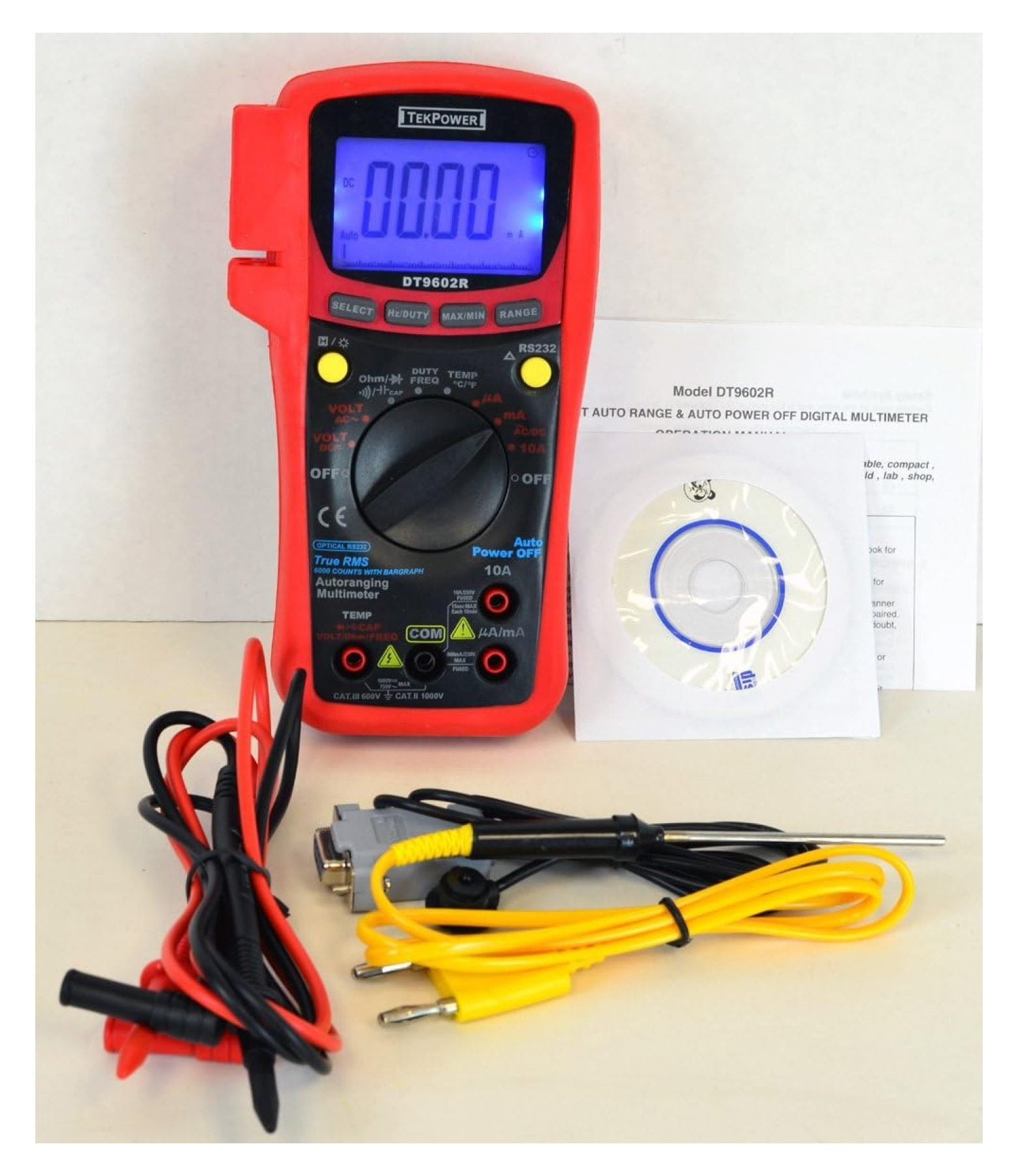

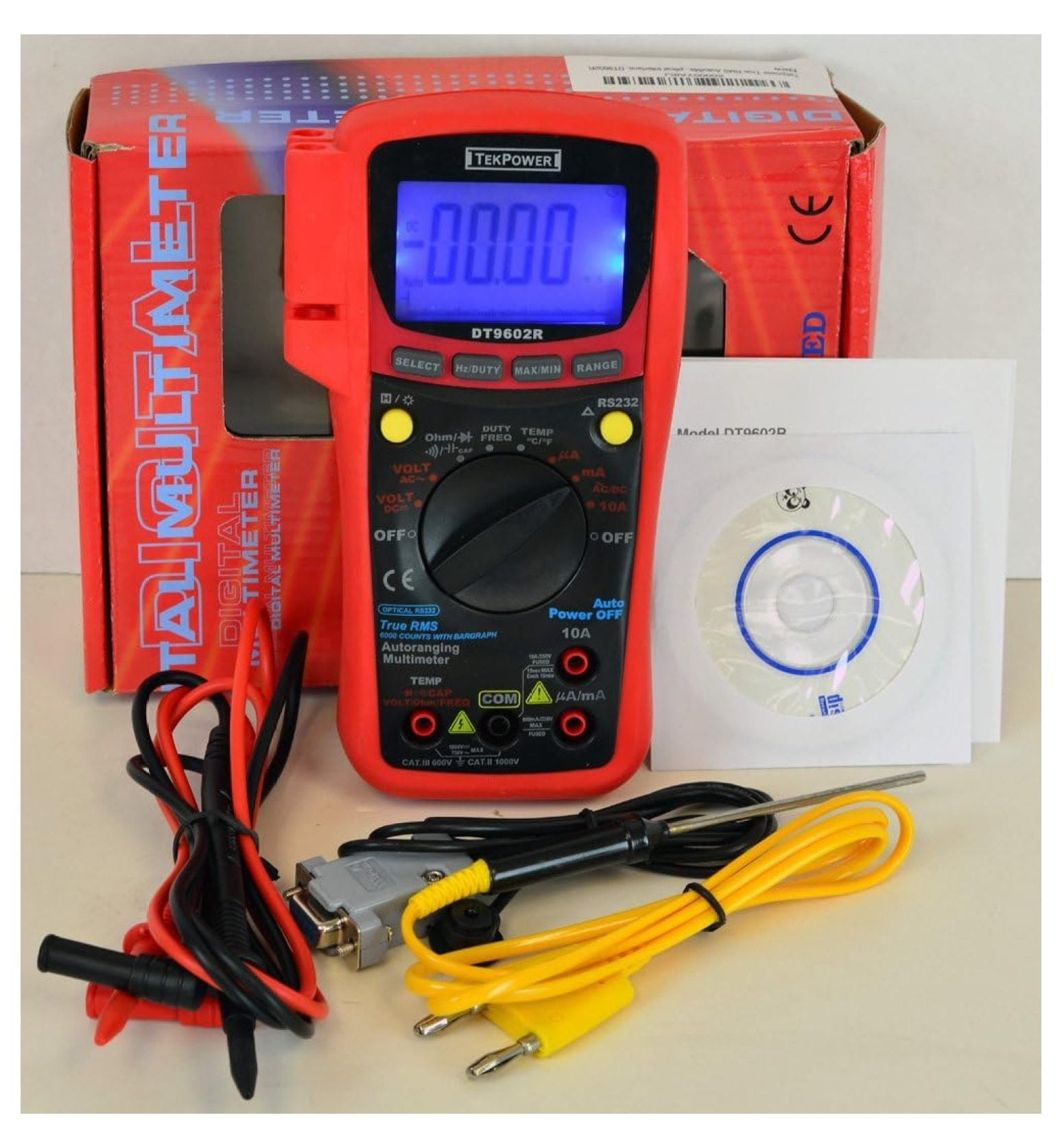

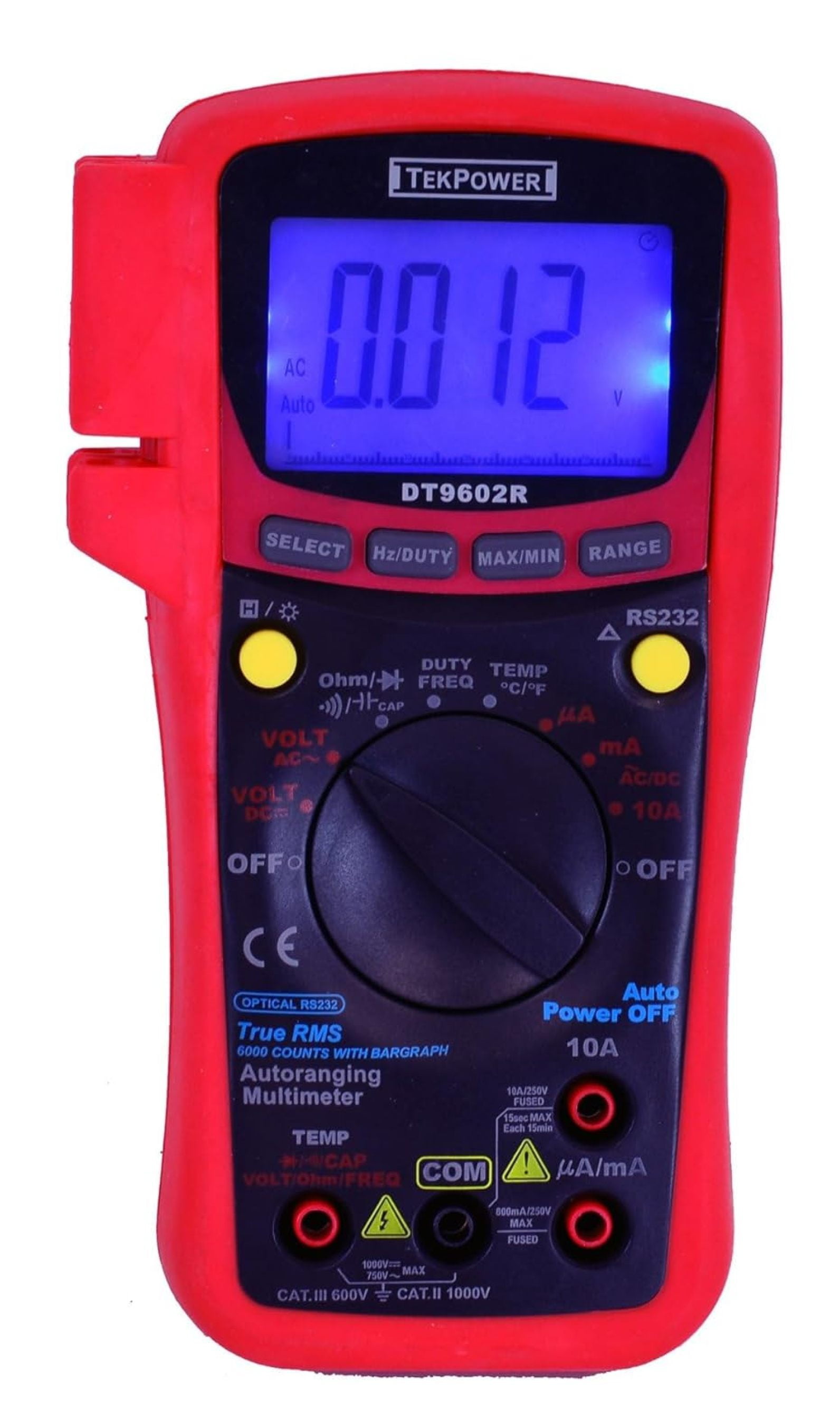

DT9602R True RMS Auto/Manual Digital Multimeter with RS232 Optical Interface, Computer| Multimeter type | Digital |
|---|---|
| Measurement type | True RMS AC Current Measurement |
| Brand | WALDSDWAL |
| Display | Digital |
| Power type | Manual |
| Model | DT9602R |
| Height | 3.6 in |
| Weight | 1 lb |
| Accessories | A pair of test leads with shrouded plugs and capped tips, Optical RS232 cable, K-type Thermo probe, User manual |
| Has written warranty | No |
| Color | Orange Black |
